思科 Catalyst 9100 室内AP

Cisco Catalyst 9100 室内AP具备出色的智能性、安全性和卓越性能，是您着手构建 Wi-Fi 7 (802.11be) 网络的理想选择。借助 Cisco Catalyst Wi-Fi 7 无线接入点升级您的无线网络。

简介

从Wi-Fi 7产品开始，思科无线接入点是全球使用的接入点。 这意味着您不再需要使用监管域代码或特定于管理模式的零件号进行订购。全球使用的接入点会自动连接到所选的网络管理模式， 在安装时确定物理位置。从Wi-Fi 6E到Wi-Fi 7的飞跃重新定义了企业无线的可能性。通过多链路操作、四无线电连接、 320 MHz信道和人工智能驱动的优化，性能预期是革命性的。思科Wi-Fi 7解决方案提供：

  • 支持强大的内部组件和更高的热输出
  • 与现有思科通用挂载系统的兼容性
  • 减少或消除包装中的原始树脂和塑料
  • Meraki和Catalyst产品线之间实现了无缝的视觉和功能统一
  • 在越来越多的未来SKU中的适应性



优势

思科 Catalyst 9100 系列WIFI7 AP的优势

  • 内置安全功能 加密威胁是新常态。设计一个可以检测并帮助阻止它们的智能网络。
  • 物联网就绪 通过全面的本地或云仪表板监控和管理设备和物联网传感器。
  • 超越可靠性 超越基本的连接性和安全性。构建一个适合您的强大Wi-Fi 7网络。
  • 伙伴关系的力量 创新不是在真空中发生的。利用与思科合作伙伴和其他工具的集成。
  • 实时远程监控 使用云管理的Meraki随时随地监控您的本地或混合网络。



应用

Catalyst 9100 室内AP让您快速安全地访问您的Wi-Fi 7网络。

面向未来的工作场所的Wi-Fi,为您提供安全、智能和有保证的无线服务。体验Wi-Fi 7和6E所提供的一切。

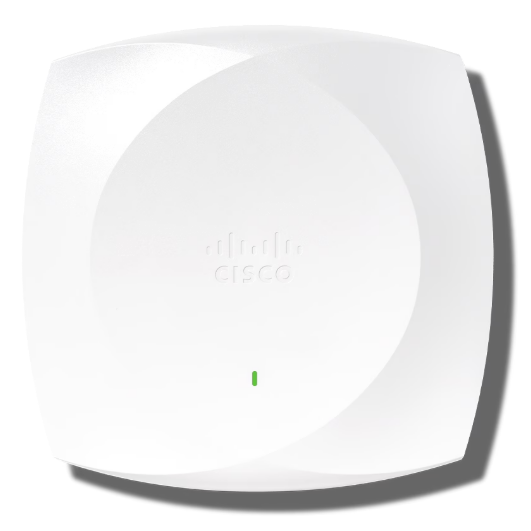

cisco-9100室内AP外观

规格 Descrition
CW9179FCisco Wireless 9179F Access Point, Wi-Fi 7, internal directional antennas with software configurable beam patterns, quad client-serving radios, tri-band with 4x4:4 on all radios, up to 16 spatial streams, dual 5 GHz, 10G mGig, Integrated GNSS/GPS. Global Use.
CW9178ICisco Wireless 9178I Access Point, Wi-Fi 7, internal antennas, quad client-serving radios, tri-band with 4x4:4 on all radios, up to 16 spatial streams, dual 5 GHz, 10G mGig, Integrated GNSS/GPS, UWB. Global Use
CW9176ICisco Wireless 9176I Access Point, Wi-Fi 7, internal omni directional antennas, tri-band, 12 spatial streams with 4x4:4 on all radios. Operates in either 2/5/6 mode or 5/5/6 mode. 10GmGig, Integrated GNSS/GPS, UWB. Global Use.
CW9176D1Cisco Wireless 9176D1 Access Point, Wi-Fi 7, internal directional antennas, tri-band, 12 spatial streams with 4x4:4 on all radios. Operates in either 2/5/6 mode or 5/5/6 mode. 10G mGig, Integrated GNSS/GPS, UWB. Global Use.
CW9172HCisco Wireless 9172H Access Point, Wi-Fi 7, internal omni-directional antennas, tri-radio, 6 spatial streams with 2x2:2 on all radios. 2.5Gbps uplink, 3x 1Gbps LAN ports with PoE out, 1 passthrough port. Integrated BLE and 802.15.4 for IoT. Compact, energy-efficient design. Global Use.
CW9172ICisco Wireless 9172I Access Point, Wi-Fi 7, internal omni-directional antennas, tri-radio or dual-radio, 6 spatial streams with 2x2:2 on 2.4GHz, 5GHz, and 6GHz, or 2x2:2 on 2.4GHz and 4x4:4 on 5GHz with 6GHz disabled. 2.5Gbps uplink, USB 2.0, DC power jack. Integrated BLE and 802.15.4 for IoT. Energy-efficient operation. Global Use.
CW9166I-HCisco Catalyst 9166I Access Point, Wi-Fi 6E, internal antennas, 4x4+4x4+4x4 MIMO with XOR radio, 5G mGig with Reg-X
CW9166I-MRCisco Catalyst 9166I Access Point, Wi-Fi 6E, internal antennas, 4x4+4x4+4x4 MIMO with XOR radio, 5G mGig with Meraki
Note:Customers ordering 9160 access points shipping with Meraki Management Mode (-MR) must have a Meraki license to operate with the Meraki dashboard or to migrate to Cisco DNA Management Mode.
CW9166D1-HCisco Catalyst 9166DI Access Point, Wi-Fi 6E, integrated directional antenna, 4x4+4x4+4x4 MIMO with XOR radio, 5G mGig, with Reg-X.
CW9166D1-MRCisco Catalyst 9166DI Access Point, Wi-Fi 6E, integrated directional antenna, 4x4+4x4+4x4 MIMO with XOR radio, 5G mGig, with Meraki.
Note:Customers ordering 916X access points shipping with Meraki Management Mode (-MR) must have a Meraki license to operate with the Meraki dashboard or to migrate to Cisco DNA Management Mode.
CW9164I-HCisco Catalyst 9164I Access Point, Wi-Fi 6E, internal antennas, 2x2+4x4+4x4 MIMO, 2.5G mGig with Reg-X.
CW9164I-MRCisco Catalyst 9164I Access Point, Wi-Fi 6E, internal antennas, 2x2+4x4+4x4 MIMO, 2.5G mGig with Meraki.
Note:Customers ordering 9160 access points shipping with Meraki Management Mode (-MR) must have a Meraki license to operate with the Meraki dashboard or to migrate to Cisco DNA Management Mode.
CW9162I-HCisco Catalyst 9162I Access Point, Wi-Fi 6E, internal antennas, 2x2+2x2+2x2 MIMO, 2.5G mGig with Reg-X.
CW9162I-MRCisco Catalyst 9162I Access Point, Wi-Fi 6E, internal antennas, 2x2+2x2+2x2 MIMO, 2.5G mGig with Meraki.
Note:Customers ordering 9160 access points shipping with Meraki Management Mode (-MR) must have a Meraki license to operate with the Meraki dashboard or to migrate to Cisco DNA Management Mode.
C9136I-HCisco Catalyst 9136I Access Point, Wi-Fi 6E, internal antennas, 4x4+8x8+4x4 MIMO
C9130AXI-HCisco Catalyst 9130AXI Access Point, internal antennas; 802.11ax; 8x8:8 MIMO
C9130AXE-HCisco Catalyst 9130AXE Access Point, external antennas; 802.11ax; 8x8:8 MIMO
C9130AXE-STA-HCisco Catalyst 9130AXE Access Point, C-9104 Stadium Antenna; 802.11ax; Dual 5 GHz MIMO
C9120AXI-HCisco Catalyst 9120AXI Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO
C9120AXE-HCisco Catalyst 9120AXE Access Point, external antennas; Wi-Fi 6; 4x4:4 MIMO
C9120AXP-HCisco Catalyst 9120AXP Access Point, external antennas; professional install; Wi-Fi 6; 4x4:4 MIMO
C9115AXI-HCisco Catalyst 9115AXI Access Point, internal antenna; Wi-Fi 6; 4x4:4 MIMO
C9115AXE-HCisco Catalyst 9115AXE Access Point, external antenna; Wi-Fi 6; 4x4:4 MIMO
C9105AXI-HCisco Catalyst 9105AX Access Point, internal antenna; ceiling mount, Wi-Fi 6; 2x2:2 MIMO
C9105AXW-HCisco Catalyst 9105AX Access Point, internal antenna; wall mount, Wi-Fi 6; 2x2:2 MIMO



天线等配件选择

规格 Descrition Indoor/Outdoor
AIR-ANT2524DW-RSCisco Aironet dual-band dipole antenna; white; peak gain 2dBi at 2.4 GHz and 5 dBi at 5 GHzIndoor
AIR-ANT2535SDW-RSCisco Aironet short dual-band omni antenna, Peak Gain 3 dBi at 2.4. GHz and 5 dBi at 5 GHzIndoor
AIR-ANT2524V4C-RS=Cisco Aironet omni antenna, ceiling mount, Peak Gain 2 dBi at 2.4. GHz and 4 dBi at 5 GHzIndoor
AIR-ANT2544V4M-RS=Cisco Aironet omni antenna, wall/pole mount, Peak Gain 2 dBi at 2.4 GHz and 4 dBi at 5 GHzIndoor
AIR-ANT2566P4W-RS=Cisco Aironet patch antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHzIndoor
AIR-ANT2566D4M-RS=Cisco Aironet directional antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHzIndoor
AIR-ANT2513P4M-NS=Cisco Aironet directional antenna, wall/pole mount, Peak Gain 13 dBi at 2.4 GHz and 13 dBi at 5 GHzIndoor
AIR-ANT2566P4W-DS=Cisco Aironet patch antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz, 4-port DART connectorIndoor
AIR-ANT2566D4M-DS=Cisco Aironet directional antenna, wall/pole mount, Peak Gain 6 dBi at 2.4 GHz and 6 dBi at 5 GHz, 4-port DART connectorIndoor



可选供电模块

规格 Descrition Indoor/Outdoor
CW-INJ-8802.3bt, 60W, Cisco Power Injector, 10 Gbps EthernetIndoor
AIR-PWRINJ7=802.3bt Cisco Power Injector, 5Gbps EthernetIndoor
AIR-PWRINJ6=802.3at Cisco Power InjectorIndoor
PoE+ via switch portAny 802.3at (30.0 W) compliant switch portIndoor



规格

思科Catalyst 9100系列AP规格

思科Catalyst 9100系列AP规格参数
